python分段函数如何编写?


本文摘自php中文网,作者coldplay.xixi,侵删。

python分段函数如何编写?

python编写分段函数的方法:

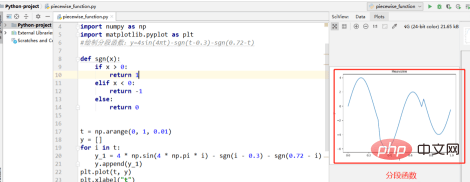

1.绘制分段函数:y=4sin(4πt)-sgn(t-0.3)-sgn(0.72-t)

代码:

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

#!/usr/bin/python

# -*- coding:utf-8 -*-

import numpy as np

import matplotlib.pyplot as plt

#绘制分段函数:y=4sin(4πt)-sgn(t-0.3)-sgn(0.72-t)

def sgn(x):

    if x > 0:

        return 1

    elif x < 0:

        return -1

    else:

        return 0

t = np.arange(0, 1, 0.01)

y = []

for i in t:

    y_1 = 4 * np.sin(4 * np.pi * i) - sgn(i - 0.3) - sgn(0.72 - i)

    y.append(y_1)

plt.plot(t, y)

plt.xlabel("t")

plt.ylabel("y")

plt.title("Heavsine")

plt.show()



2.使用Matplotlib绘制分段函数:
