TensorFlow模型保存和提取方法示例

# 本文件程序为配合教材及学习进度渐进进行，请按照注释分段执行

# 执行时要注意IDE的当前工作过路径，最好每段重启控制器一次，输出结果更准确

# Part1: 通过tf.train.Saver类实现保存和载入神经网络模型

# 执行本段程序时注意当前的工作路径

import tensorflow as tf

v1 = tf.Variable(tf.constant(1.0, shape=[1]), name="v1")

v2 = tf.Variable(tf.constant(2.0, shape=[1]), name="v2")

result = v1 + v2

saver = tf.train.Saver()

with tf.Session() as sess:

  sess.run(tf.global_variables_initializer())

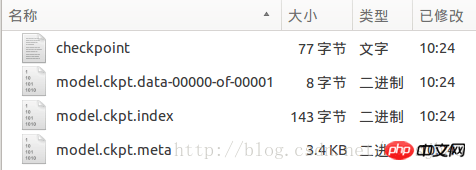

  saver.save(sess, "Model/model.ckpt")

# Part2: 加载TensorFlow模型的方法

import tensorflow as tf

v1 = tf.Variable(tf.constant(1.0, shape=[1]), name="v1")

v2 = tf.Variable(tf.constant(2.0, shape=[1]), name="v2")

result = v1 + v2

saver = tf.train.Saver()

with tf.Session() as sess:

  saver.restore(sess, "./Model/model.ckpt") # 注意此处路径前添加"./"

  print(sess.run(result)) # [ 3.]

# Part3: 若不希望重复定义计算图上的运算，可直接加载已经持久化的图

import tensorflow as tf

saver = tf.train.import_meta_graph("Model/model.ckpt.meta")

with tf.Session() as sess:

  saver.restore(sess, "./Model/model.ckpt") # 注意路径写法

  print(sess.run(tf.get_default_graph().get_tensor_by_name("add:0"))) # [ 3.]

# Part4： tf.train.Saver类也支持在保存和加载时给变量重命名

import tensorflow as tf

# 声明的变量名称name与已保存的模型中的变量名称name不一致

u1 = tf.Variable(tf.constant(1.0, shape=[1]), name="other-v1")

u2 = tf.Variable(tf.constant(2.0, shape=[1]), name="other-v2")

result = u1 + u2

# 若直接生命Saver类对象，会报错变量找不到

# 使用一个字典dict重命名变量即可，{"已保存的变量的名称name": 重命名变量名}

# 原来名称name为v1的变量现在加载到变量u1（名称name为other-v1）中

saver = tf.train.Saver({"v1": u1, "v2": u2})

with tf.Session() as sess:

  saver.restore(sess, "./Model/model.ckpt")

  print(sess.run(result)) # [ 3.]

# Part5: 保存滑动平均模型

import tensorflow as tf

v = tf.Variable(0, dtype=tf.float32, name="v")

for variables in tf.global_variables():

  print(variables.name) # v:0

ema = tf.train.ExponentialMovingAverage(0.99)

maintain_averages_op = ema.apply(tf.global_variables())

for variables in tf.global_variables():

  print(variables.name) # v:0

             # v/ExponentialMovingAverage:0

saver = tf.train.Saver()

with tf.Session() as sess:

  sess.run(tf.global_variables_initializer())

  sess.run(tf.assign(v, 10))

  sess.run(maintain_averages_op)

  saver.save(sess, "Model/model_ema.ckpt")

  print(sess.run([v, ema.average(v)])) # [10.0, 0.099999905]

# Part6: 通过变量重命名直接读取变量的滑动平均值

import tensorflow as tf

v = tf.Variable(0, dtype=tf.float32, name="v")

saver = tf.train.Saver({"v/ExponentialMovingAverage": v})

 with tf.Session() as sess:

  saver.restore(sess, "./Model/model_ema.ckpt")

  print(sess.run(v)) # 0.0999999

# Part7: 通过tf.train.ExponentialMovingAverage的variables_to_restore()函数获取变量重命名字典

import tensorflow as tf

v = tf.Variable(0, dtype=tf.float32, name="v")

# 注意此处的变量名称name一定要与已保存的变量名称一致

ema = tf.train.ExponentialMovingAverage(0.99)

print(ema.variables_to_restore())

# {'v/ExponentialMovingAverage': <tf.Variable 'v:0' shape=() dtype=float32_ref>}

# 此处的v取自上面变量v的名称name="v"

saver = tf.train.Saver(ema.variables_to_restore())

 with tf.Session() as sess:

  saver.restore(sess, "./Model/model_ema.ckpt")

  print(sess.run(v)) # 0.0999999

# Part8: 通过convert_variables_to_constants函数将计算图中的变量及其取值通过常量的方式保存于一个文件中

import tensorflow as tf

from tensorflow.python.framework import graph_util

v1 = tf.Variable(tf.constant(1.0, shape=[1]), name="v1")

v2 = tf.Variable(tf.constant(2.0, shape=[1]), name="v2")

result = v1 + v2

with tf.Session() as sess:

  sess.run(tf.global_variables_initializer())

  # 导出当前计算图的GraphDef部分，即从输入层到输出层的计算过程部分

  graph_def = tf.get_default_graph().as_graph_def()

  output_graph_def = graph_util.convert_variables_to_constants(sess,

                            graph_def, ['add'])

  with tf.gfile.GFile("Model/combined_model.pb", 'wb') as f:

    f.write(output_graph_def.SerializeToString())

# Part9: 载入包含变量及其取值的模型

import tensorflow as tf

from tensorflow.python.platform import gfile

with tf.Session() as sess:

  model_filename = "Model/combined_model.pb"

  with gfile.FastGFile(model_filename, 'rb') as f:

    graph_def = tf.GraphDef()

    graph_def.ParseFromString(f.read())

  result = tf.import_graph_def(graph_def, return_elements=["add:0"])

  print(sess.run(result)) # [array([ 3.], dtype=float32)]
